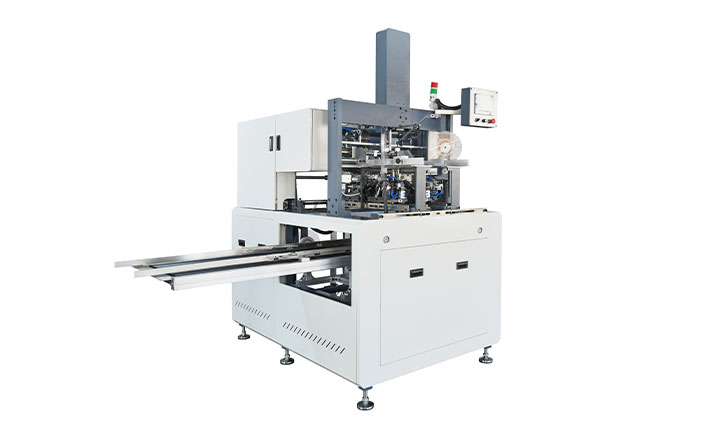

What is a Rigid Box Making Machine?

A rigid box making machine is a specialized piece of equipment designed for the production of rigid boxes, also known as set-up boxes. These boxes are sturdier and more durable compared to folding cartons, often used for high - end packaging in industries such as luxury goods, jewelry, electronics, and high - end food products. Here are the key aspects:

1. Structure and Components

• Feeding System: This is where the raw materials are loaded. For rigid box making, it typically includes mechanisms to handle materials like thick cardboard, chipboard, or paperboard. The feeding system ensures that the materials are fed into the machine in a consistent and controlled manner, one sheet at a time or in a continuous flow depending on the machine type.
• Gluing Unit: It applies adhesive to different parts of the box components. Glue is precisely dispensed onto the edges or surfaces that need to be joined together, such as the sides of the box body and the flaps. The amount and distribution of glue are carefully regulated to ensure a strong bond without excessive seepage or wastage.
• Forming and Folding Mechanisms: These components shape the box. They bend and fold the cardboard or paperboard according to the pre - set box design. For example, they create the right - angled corners and fold the flaps into place. Some advanced machines can perform complex folding operations to create boxes with unique shapes.
• Cutting Tools: Used to trim the excess material and cut the box components to the required size. Precision cutting is crucial to ensure that all parts fit together accurately. High - quality cutting tools can produce clean, sharp edges, enhancing the overall appearance of the box.
• Control Panel: Operators use the control panel to set parameters such as box size, folding patterns, glue application settings, and production speed. Modern machines often have digital control panels with touch - screen interfaces for easy operation and adjustment.

2. Working Process

• Material Preparation: The raw cardboard or paperboard is first prepared. It may need to be cut to the appropriate size and thickness before being loaded into the machine. In some cases, the material may also be pre - printed with branding, designs, or product information.
• Box Assembly: Once the materials are fed into the machine, the gluing unit applies glue to the relevant areas. Then, the forming and folding mechanisms start working. They fold the cardboard along the pre - scored lines to form the box structure. The glued parts are then pressed together to allow the glue to bond, creating a sturdy box.
• Quality Inspection: After the box is formed, some machines have built - in quality inspection systems. These can detect issues such as misaligned folds, insufficient glue, or cuts that are not precise. Defective boxes can be sorted out during this stage.
• Finishing Touches: Some rigid box making machines may also be equipped to add finishing touches like embossing, debossing, or applying varnish to enhance the box's appearance.

3. Types of Rigid Box Making Machines

• Semi - Automatic Machines: These machines require some manual intervention during the production process. For example, an operator may need to load the materials, adjust the settings between batches, or remove the finished boxes. Semi - automatic machines are often more affordable and suitable for small - to medium - scale production runs.
• Fully Automatic Machines: These are highly automated and can run continuously with minimal human intervention. They can handle large - scale production efficiently, with high - speed operation and consistent quality output. Fully automatic machines are equipped with advanced control systems and sensors to ensure smooth production.

In conclusion, a rigid box making machine is an essential piece of equipment in the packaging industry, enabling the creation of high - quality, durable, and aesthetically pleasing rigid boxes for a wide range of products. Its components, working process, and different types all contribute to its versatility and importance in modern packaging production.
