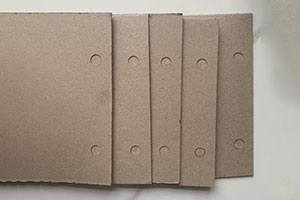

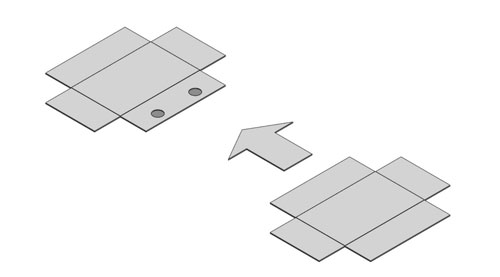

This machine is a basic model for drilling the hole before applying the magnets or metals onto the greyboard. The whole machine is small and compact, which is very much suitable to the small order or small workshop.
It has two working position which can drill the holes and suck the dust at the same time.
This machine is controlled by PLC and then adjusted by HMI, and all movements are driven by stepper motor and pneumatic cylinder, which is very easy adjusting and fast change.
Model |
FKT-ZK480 |
Power supply |
AC220V, 50/60Hz, single phase |
Total power |
3kW |
Air supply |
0.6-0.8MPa, 10L/min |
Production speed |
0-30pcs/min |
Positioning precision |
±2mm |
Hole diameter |
8-21mm |
Board size(L*W) |
900x700mm |
Board thickness |
1-5mm |
Distance between holes |
70-500mm |
Distance between board edge and hole |
0-130mm |
Machine net weight |
150kg |
Machine dimension |
800mmx750mmx1450mm |
Remark: every different diameter needs a pcs of customized drilling head. |
