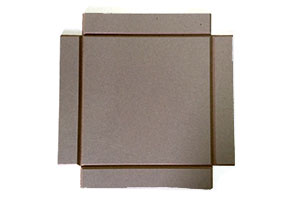

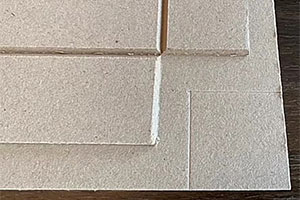

The Automatic Grooving Machine type is standard with V shape and optional with U shape. The grooving accuracy is ±0.1mm. So it suitable for processing various models of rigid boxes and cover cases.
This grooving machine has a big drum inside, which allows the boards travel around the inner part of the machine. The board was fed from the top, bypass the back, and exits from the bottom.
Several belts are tightly pressing the board while the boards are traveling on the big drum. The knives are fixed according to the product’s notch position.
|
Model |
FKT-850G |
|
Board width |
150-850mm |
|
Board length |
180-550mm |
|
Drum width |
1100mm |
|
Board thickness |
1-3.5mm |
|
Best grooving accuracy |
±0.05mm |
|
Speed |
80-120pcs/min (size of 200*200mm) |
|
Way of corners cutting |
Servo knife cutting ,cutting length is Control by PLC |
|
Quantity of grooving girder (crossbeam) |
2 |
|
Groove distance (between blades from the same girder) |
Min.70mm |
|
Groove distance (between blades from different girder) |
No limit |
|
Grooving knife |
9 sets (with digital Auxiliary Positioning ) |
|
Power |
6.0 kW |
|
Machine size |
2650*1432*1438mm |
|
Weight |
2360kg |
