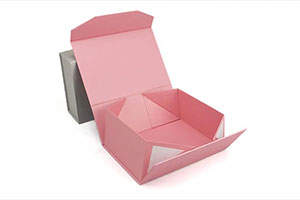

The foldable rigid box is a new-coming and rising star in the luxury packaging industry. It can be folded to be a flat block during transportation, which can save about 70%-95% shipping cost. Besides, foldable rigid box is much more complicated than the traditional rigid boxes, which allow it to have display more art elements so as to show a better artistic creativity above the content.
During this industrial transformation, many brands will only need a small amount of foldable rigid boxes to detect the market outlook in advance. So totally manually can fit, but not for a good quality. So here we have the semi-auto line.
Process Flow Diagram

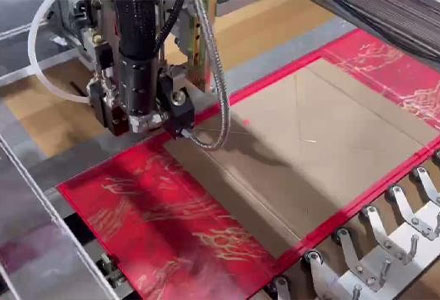

This machine can automatic feed the hard cover and then spray onto the hard cover. The glue on the hard cover is even, which can decrease the gap between the hard cover and the wings.

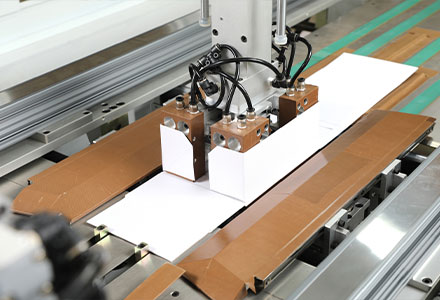

This machine is specially designed and developed for the small order of foldable rigid box. We need an operator to put the box-before-forming onto the machine’s table, and then the machine will wrap up the wings, and then wrap up the hard cover, and form a ready foldable rigid box. It needs a set of customized molds according to the real box, thus the ready box is accurate and beautiful.
|
Model |
Glue Spraying Machine |
|
Power Supply |
AC220V/50Hz |
|
Total Power |
4.5kW |
|
Air supply |
0.8MPa, 150-250L/min |
|
Speed |
15-20pcs/min |
|
Weight |
1000kg |
|
Machine Dimension |
3350mm*1460mm*1500mm |
|
Glue gun qty |
1pcs |
|
Glue type |
Hot melt glue, medium speed drying |
|
Glue tank volume |
4L |
|
Glue melt temperature |
170-190°C |
|
Hard case Max |
900mm*450mm |
|
Hard case Max |
200mm*100mm |
|
Inner box size Max |
450mm*450mm*120mm |
|
Inner box size Min |
80mm*80mm |
|
Model |
Collapsible Box Forming Machine |
|
Production speed |
≤12pcs/min |
|

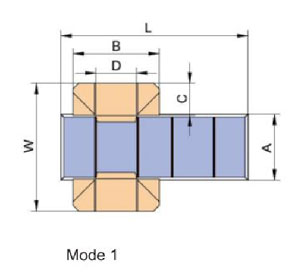

Hard cover size (LxA) |
300x120mm ~ 1000x450mm |
|
Wing size (BxC) |
200x50mm ~ 550x120mm |
|
Wing outside distance (W) |
≤650mm |
|
Wing inside distance |
≥120mm |
|
Power supply |
AC220V, 50Hz, single phase |
|
Total power |
1kW |
|
Air supply |
0.6-0.8MPa, 60L/min |
|
Machine net weight |
200kg |
|
Machine dimension |
1050mmx1450mmx2200mm |
